Comet Regulator For High Purity Gases

Comet Regulator For High Purity Gases

( 0 Customar Review )

The Comet Regulator for High Purity Gases is designed for situations that need accurate pressure control and very clean gas.
Built with corrosion-resistant materials, it ensures consistent performance in demanding environments.
Ideal for laboratory, analytical, and industrial use where accuracy and safety are paramount.
Compact, durable, and easy to operate for long-term reliability.

Category: . Brand: TANAKA Japan

Key Features:

1) Precision pressure control for high-purity gases
2) Corrosion-resistant brass or stainless-steel body
3) Dual gauge for inlet and outlet monitoring
4) Leak-tight performance ensuring gas purity
5) Suitable for laboratory and industrial applications

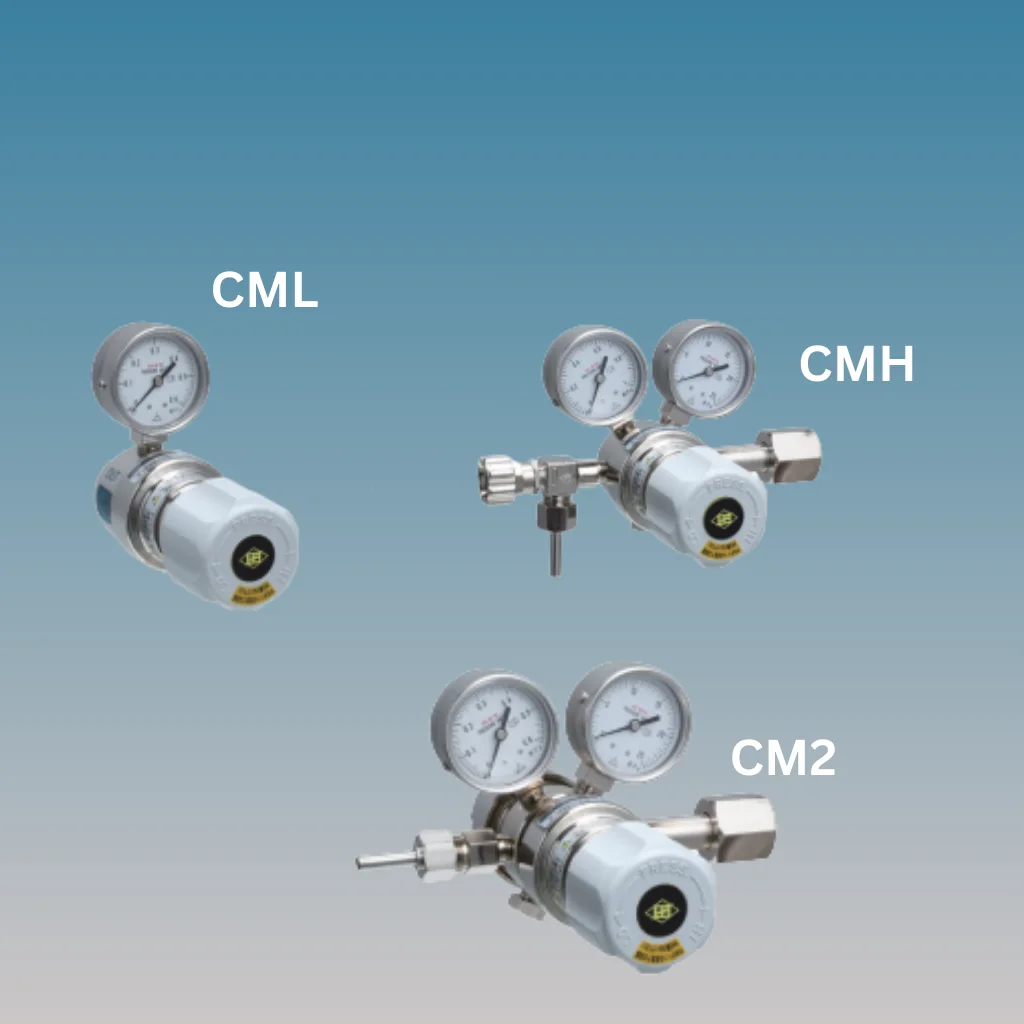

Model	Gas	Inlet pressure gauge (MPa)	Outlet pressure gauge (MPa)	Max. Working Pressure (MPa)	Connections	Flow Rate (at NL/min)	Weight (kg)
CML *Line Use	Oxygen Argon Helium Nitrogen Hydrogen	Nil (Max. 3)	0.3	0.2	Rc1/4	200NL/min (P2=0.2) 400NL/min (P2=1.0)	1
			0.5	0.4
			1.0	0.9
			1.5	0.99
CMH *Single Stage	Oxygen Argon Helium Nitrogen Hydrogen	25 (Max. 15)	0.3	0.2	JIS, CGA	400NL/min (P2=1.0)	1.65
			0.5	0.4
			1.0	0.9
			1.5	0.99
CMZ *Double Stage	Oxygen Argon Helium Nitrogen Hydrogen	25 (Max. 15)	0.5	0.4	JIS, CGA	55NL/min (P2=1.0)	2
			1.0	0.9
			1.5	0.99
