Super Labo For Speciality Gases

( 0 Customar Review )

Super Labo regulators are designed for ultra-high purity and speciality gas applications demanding precise control and contamination-free performance.
Manufactured with advanced diaphragm technology to ensure stable outlet pressure and leak-tight operation.
Ideal for laboratories, analytical instruments, and specialty gas distribution systems.
Engineered to deliver consistent accuracy, durability, and maximum safety in critical environments.

Category: . Brand: TANAKA Japan

Key Features:

High-precision pressure control for speciality gases
Stainless steel body for corrosion resistance
Cleaned and assembled for high-purity service
Compatible with non-corrosive and inert gases
Excellent leak integrity and long service life

Model	Gas	Inlet pressure gauge (MPa)	Outlet pressure gauge (MPa)	Max. Working Pressure (MPa)	Connections	Flow Rate (at NL/min)	Weight (kg)

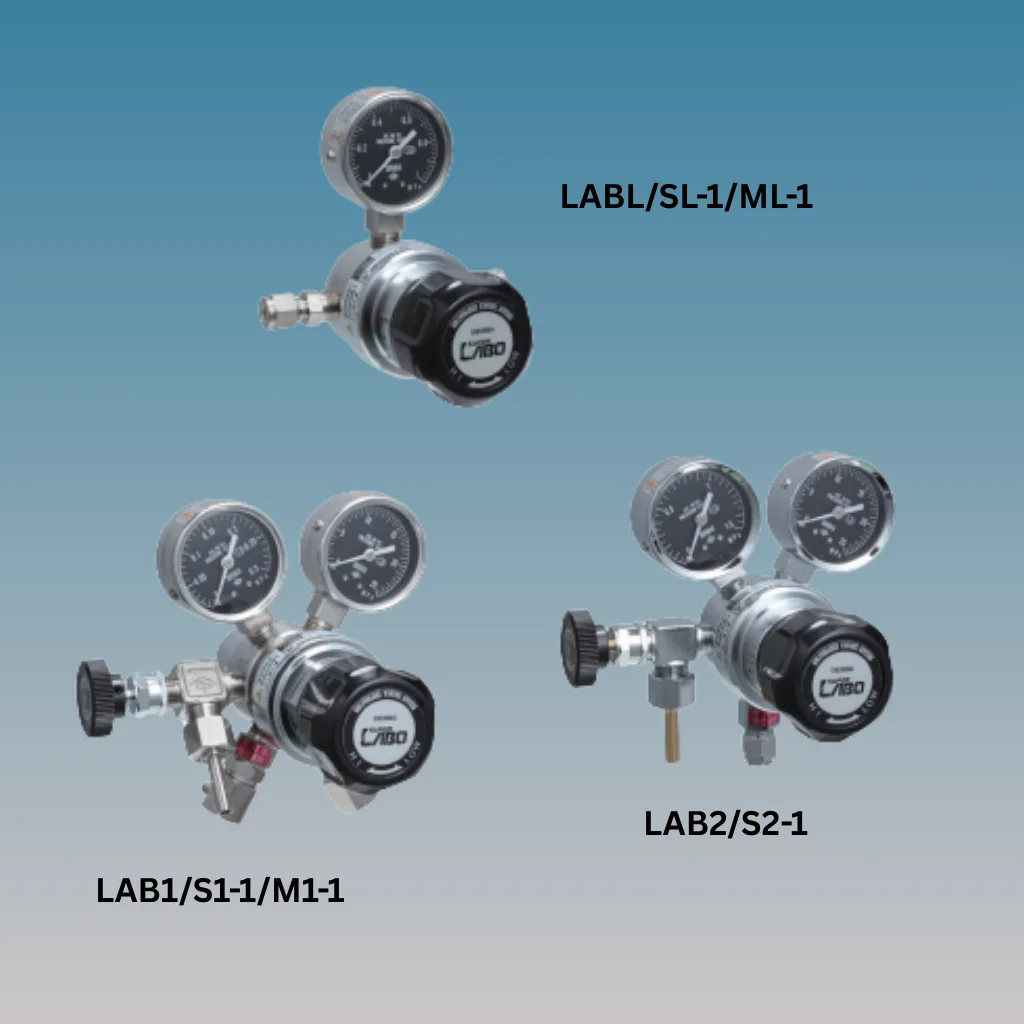

LAB-L (Brass) SL-1 (Stainless) ML-1 (Monel) *Line Use	Same as TORR Series	Nil (Max. 1)	0.3	0.2	Demand on request	260NL/min (P2=0.6)	1.2
			0.6	0.4
			1.0	0.6
			1.5	1.0
LAB-S (Brass) SL-1 (Stainless) ML-1 (Monel) *Single Stage	Same as TORR Series	25 (Max. 15)	0.3	0.2	Demand on request	250NL/min (P2=1.0)	1.4
			0.6	0.4
			1.0	0.6
			1.5	1.0
LAB-2 (Brass) SL-2 (Stainless) *Double Stage	Same as TORR Series	25a (Max. 15)	0.3	0.2	Demand on request	200NL/min (P2=1.0)	2
			0.6	0.4
			1.0	0.6
